48v Maintenance-free lead-acid battery

One of Borcart golf cart lithium battery is 48V134ah lithium battery, this style is the most hot selling. 6 seats golf cart luxury golf cart customize golf cart electric golf cart

Team & Service

Professional Team， One-stop Service

Reliable

22 Years Of Experience InGolf Cart

Quality Control

Stringent protocol oversees each process

Factory

Advanced Production line

48v134ah Lithium Battery

Parameter section

Do not disassemble, resemble, or repair the battery. Incorrect reassembly may cause combustion or electric = shock.
If the battery is damaged, contact the place you purchased it.
Do not short--circuit the battery, use it near heat or water sources, or allow it to become wet.
Do not insert nails or other objects into the battery, strike it, or weld directly on the battery.
Do not use a badly damaged battery or operate it with damaged cables or charging adapters.
Do not operate this product in explosive atmospheres (i.e. flammable liquids, gases, or dust) or set the unit on flammable materials (i.e. carpeting, upholstery,paper, cardboard).
Do not permit the battery to freeze. Never charge a frozen battery.
In case of skin or eye contact, rinse immediately with clean water and seek medical attention.
Do not keep using this product if it is damaged, waterlogged, distorted, or broke.
This product contains lithium ion batteries. When it is worn out dispose it properly using local laws and regulations.

The Borcart Golf Cart Charger is a superior charging solution that prioritizes safety and convenience. We use high-performance American KDS motors and American Curtis controllers or controllers of equal quality to Curtis to ensure reliable quality. In addition, our electric golf cart chargers are equipped with multiple protection measures, including over voltage, under voltage, overheating, over current, slow start and other protection measures. With these comprehensive protection measures, you can trust that the charging process will be safe and stable for vehicle.
One of Borcart golf cart lithium battery is 48V134ah lithium battery, this style is the most hot selling. It is a use of lithium iron phosphate (LiFePO4) as a positive electrode material.
This battery with CAN communication and Lithium battery -BMS management system, faster charging efficiency, longer service life, low self-discharge, do less than 1% month, high energy density, the same volume of lithium battery capacity is higher, light weight than lead-acid battery, light weight, is 1/6-1/5 of lead-acid battery, high and low temperature adaptability, can be used in -20℃-70℃ environment, Green environmental protection, non-toxic and harmless, regardless of production, use, scrap will not contain heavy metals, 5000 times charge and discharge cycle life, there is still 75% capacity after the end of cycle life.

Model		PG22025B
Technical Paramete	Nominal voltage	51.2V
	Nominal capacity	134Ah
	Stored energy	6860.8Wh
	Life cycles	>3500 times
	Self discharge	Max 3% per month
Charge current	Maximum charge	67A
Charging time	Standard charge	25A
Charging time	Standard charge	5.5 h
Discharge current	Continuous discharge	134A
	Maximum discharge	300A
	Over Current Detection	480A with 5S
Environment	Charge temperature range	32°F~140°F ( 0°C ~ 60°C)
	Discharge temperature range	-4°F~167°F ( -20°C ~ 75°C)
	Storage temperature range	-4°F~113°F ( 1 month ) ( -20°C~45°C)32°F~95°F ( 1 year ) ( 0°C~35°C)
General	Cell combination	2P16S
	Cell assembly	IFP67 (3.2V 67Ah)
	Casing material	Q235 steel plate
	Weight	163.1 lbs (74kg)
	Dimension (LWH)	780370285cm
	IP rate	IP66

Suspension and brake system

Frame: high-strength sheet metal frame; painting process: pickling + electrophoresis + spraying

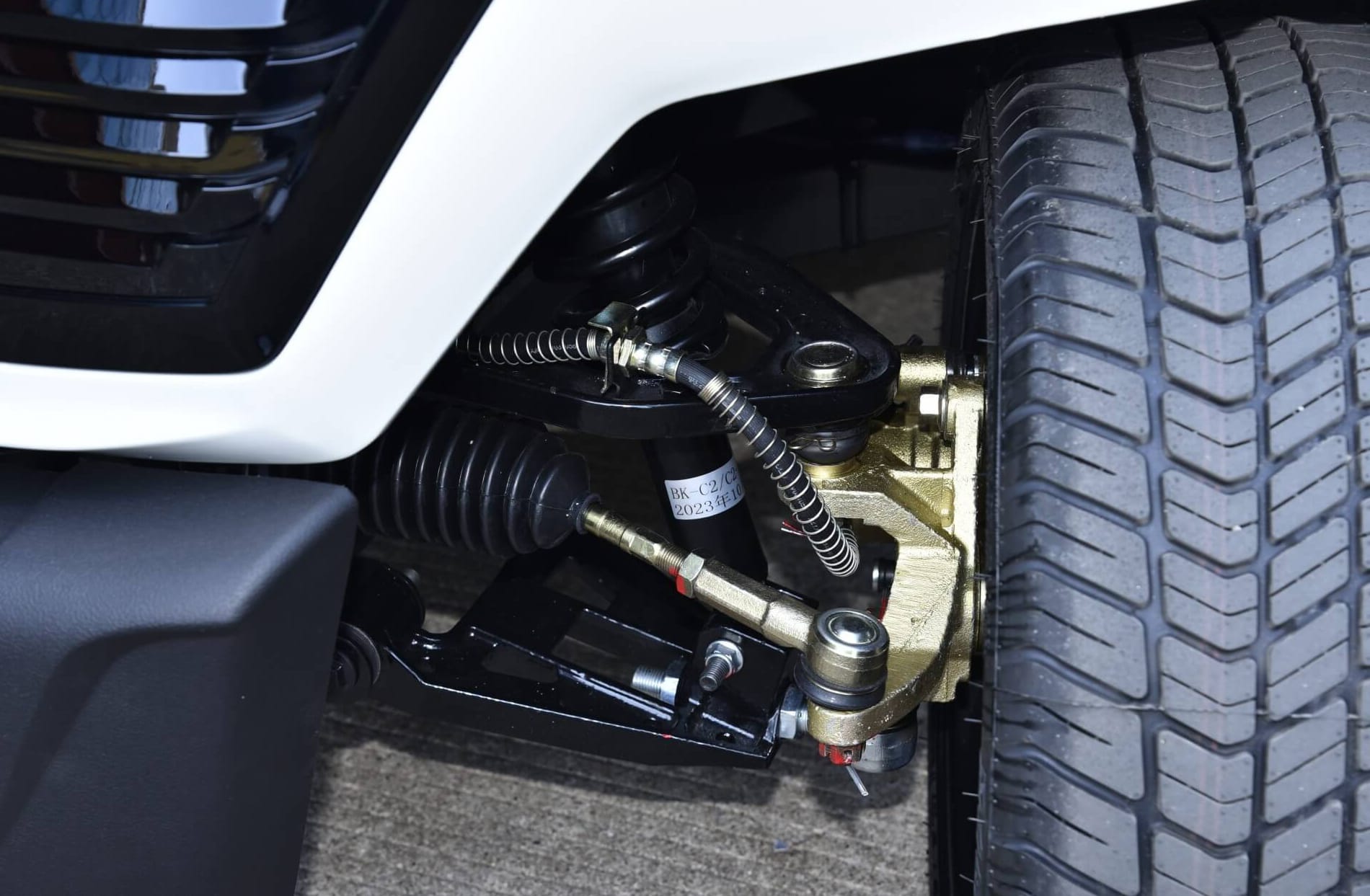

Front suspension: double swing arm independent front suspension + coil springs + cartridge hydraulic dampers.
Rear suspension: Integral rear axle, 16:1 ratio Coil spring dampers + hydraulic cartridge dampers + wishbone suspension
Brake system: 4-wheel hydraulic brakes, 4-wheel disc brakes + electromagnetic brakes for parking (with vehicle towing function)
Steering system: bidirectional rack and pinion steering system, automatic backlash compensation function

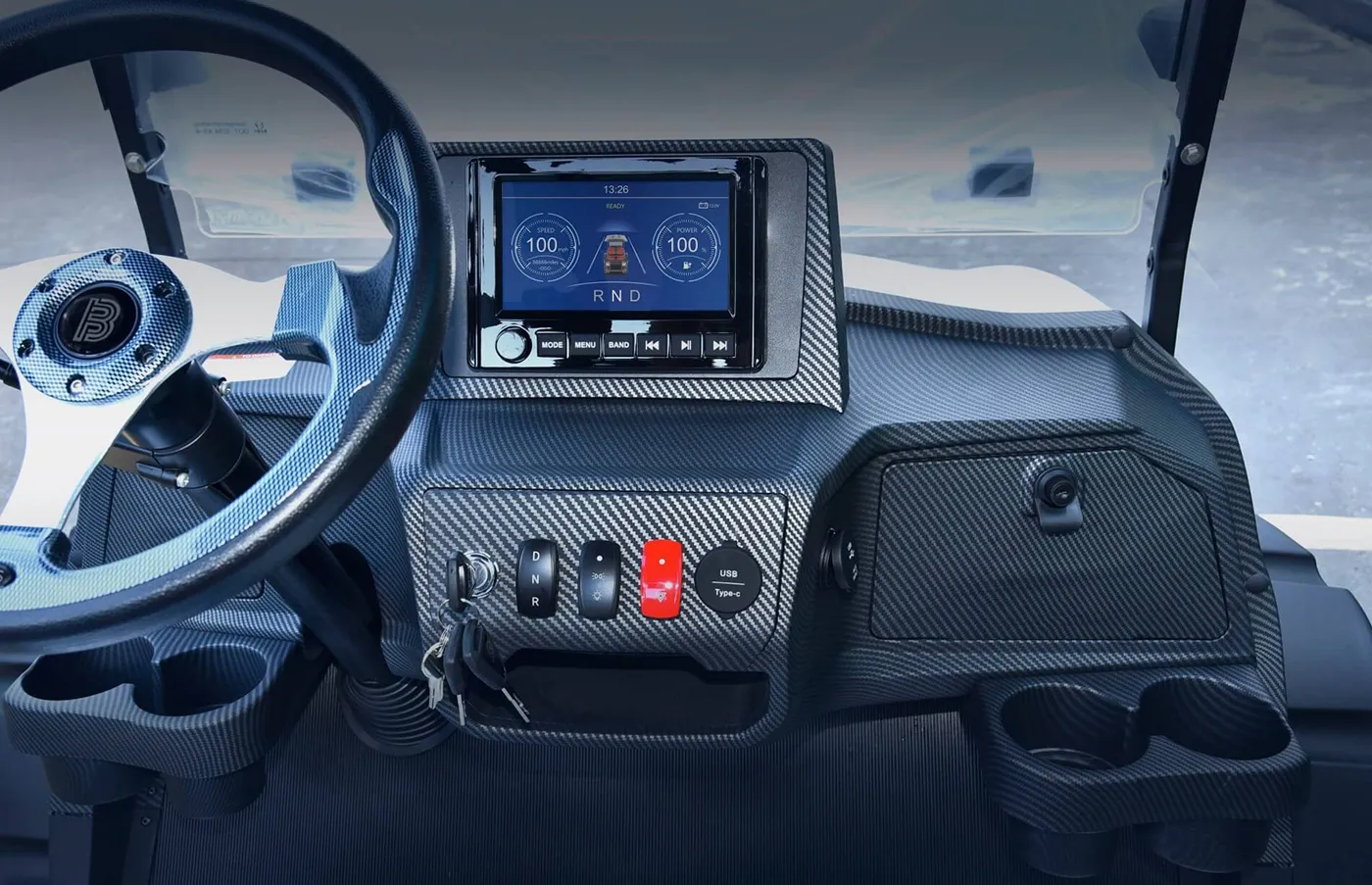

Dashboard

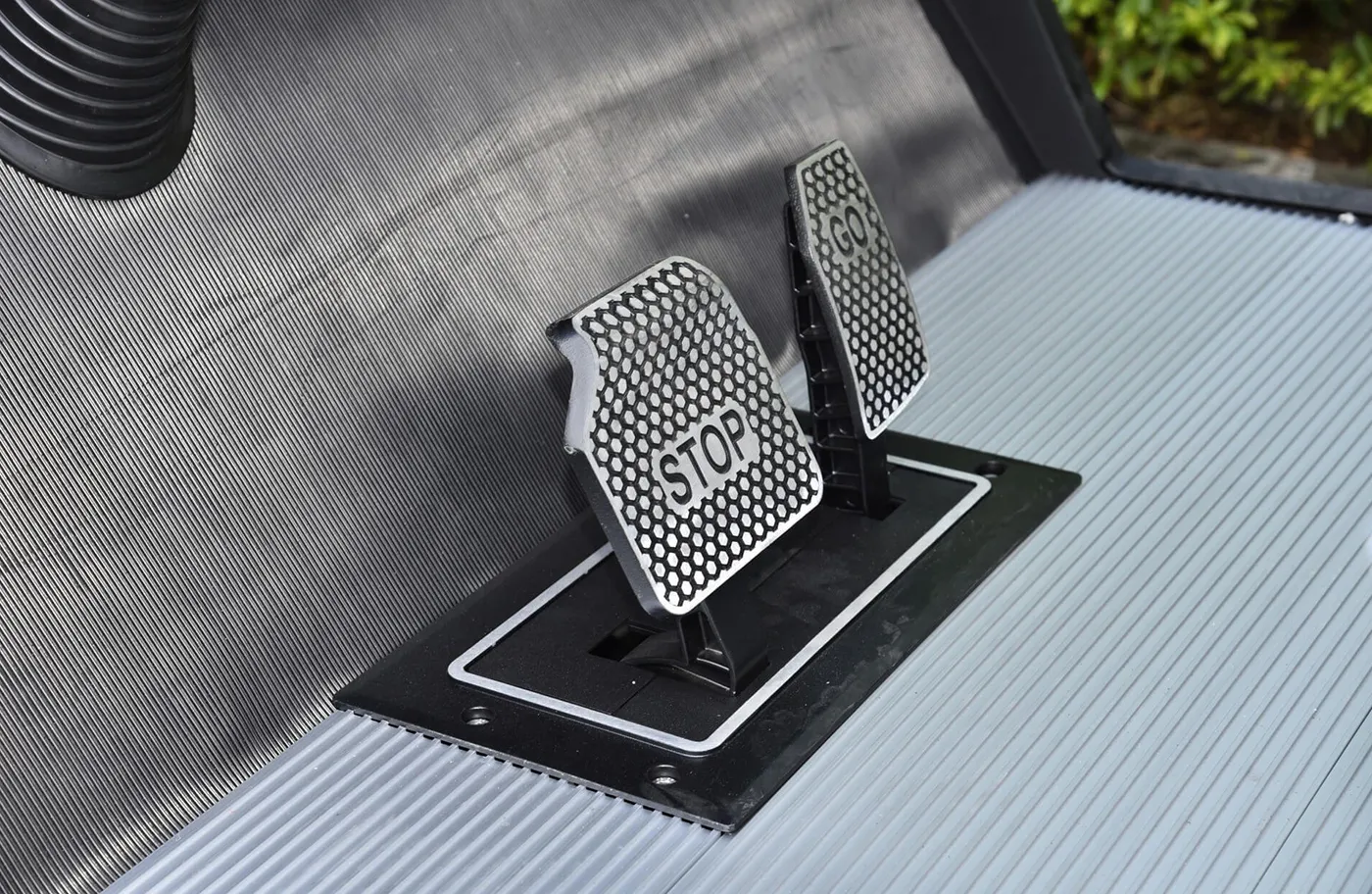

Floors

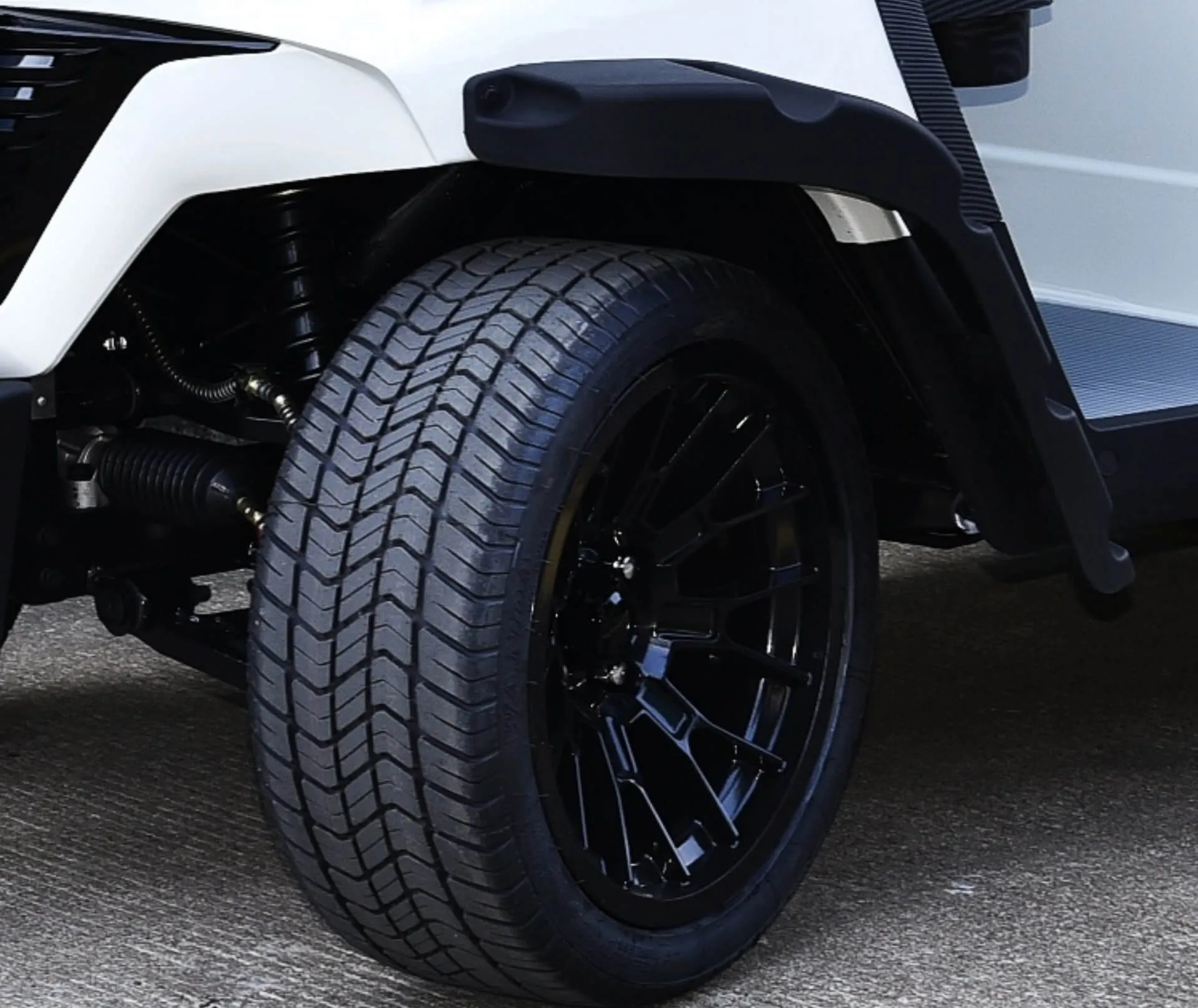

Tire

road tyres205/50-10 (4 Ply Rated). DOT certification
Soft wall: Road tires have a softer wall design that can better absorb road bumps and provide a smoother driving experience for the driver.
Fine pattern: The tread pattern of road tires is designed to reduce the noise caused by the collision between the pattern block and the road surface, so that the driving is quieter.
Low rolling resistance: The structural design of road tires focuses on reducing rolling resistance, which not only improves fuel efficiency, but also helps reduce vibration and noise during driving, further improving comfort.
