ET series aluminum alloy hopper cart models ET-C300

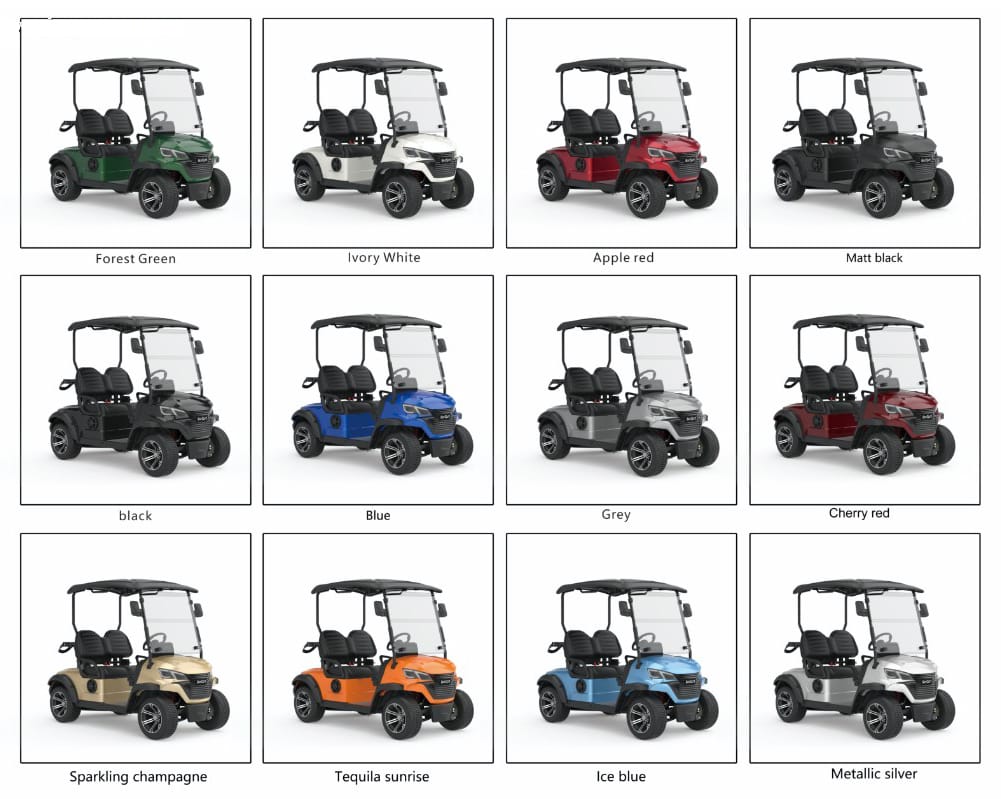

OPTIONAL COLORS

FOREST
GREEN

SAPPHIR
EBLUE

CRYSTAL
GRAY

METALLIC
BLACK

APPLE
RED

IVORY
WHITE

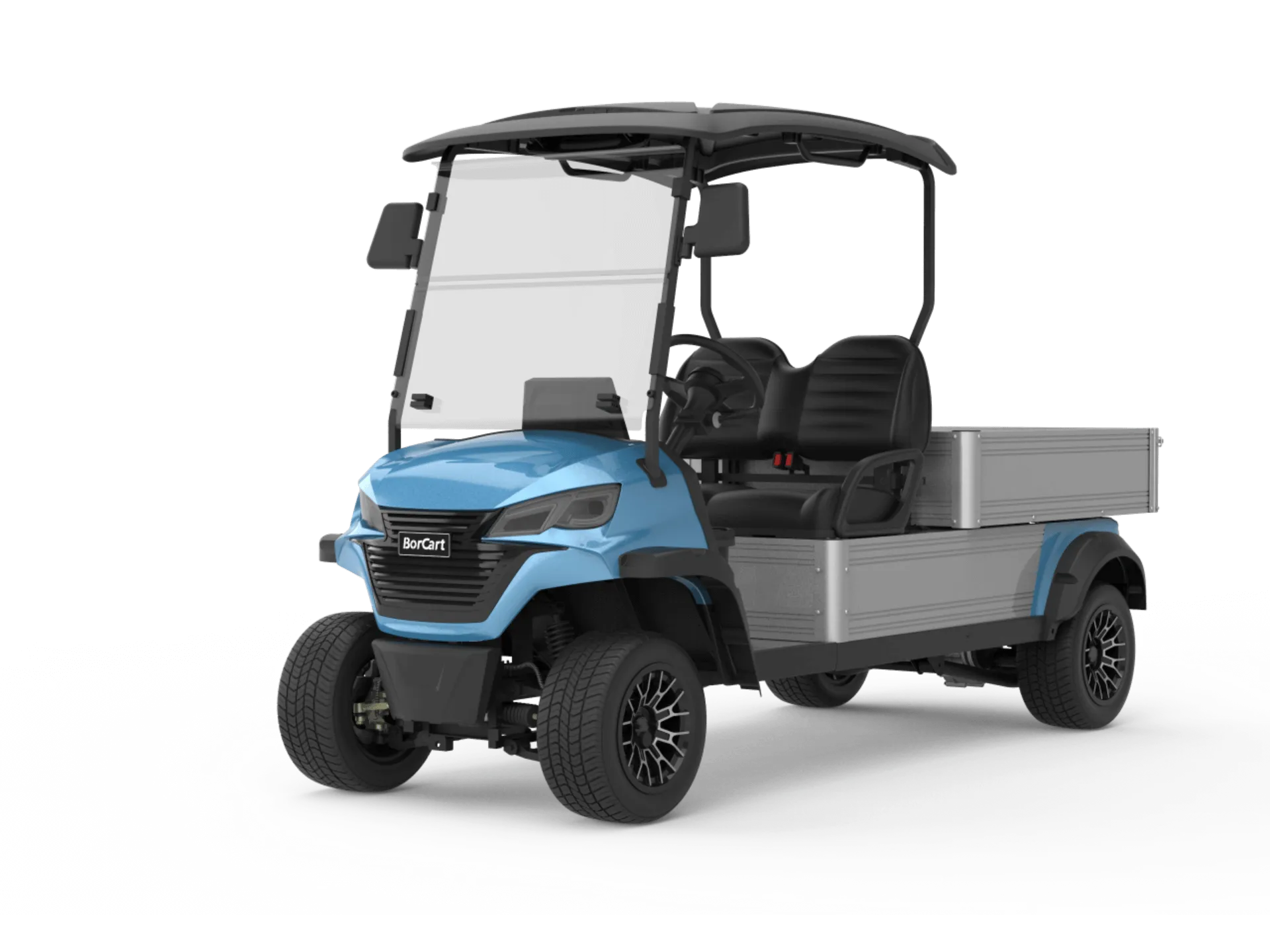

Overall vehicle display

Borcart Aluminium Alloy Material cargo cart is independent mold opening, The design and manufacture of the vehicle is not a simple imitation or copy of existing products, but a customized development according to actual needs and technical specifications. Our independent mold opening ensures the uniqueness and adaptability of products to meet the needs of specific use cases.

Team & Service

Professional Team， One-stop Service

Reliable

22 Years Of Experience InGolf Cart

Quality Control

Stringent protocol oversees each process

Factory

Advanced Production line

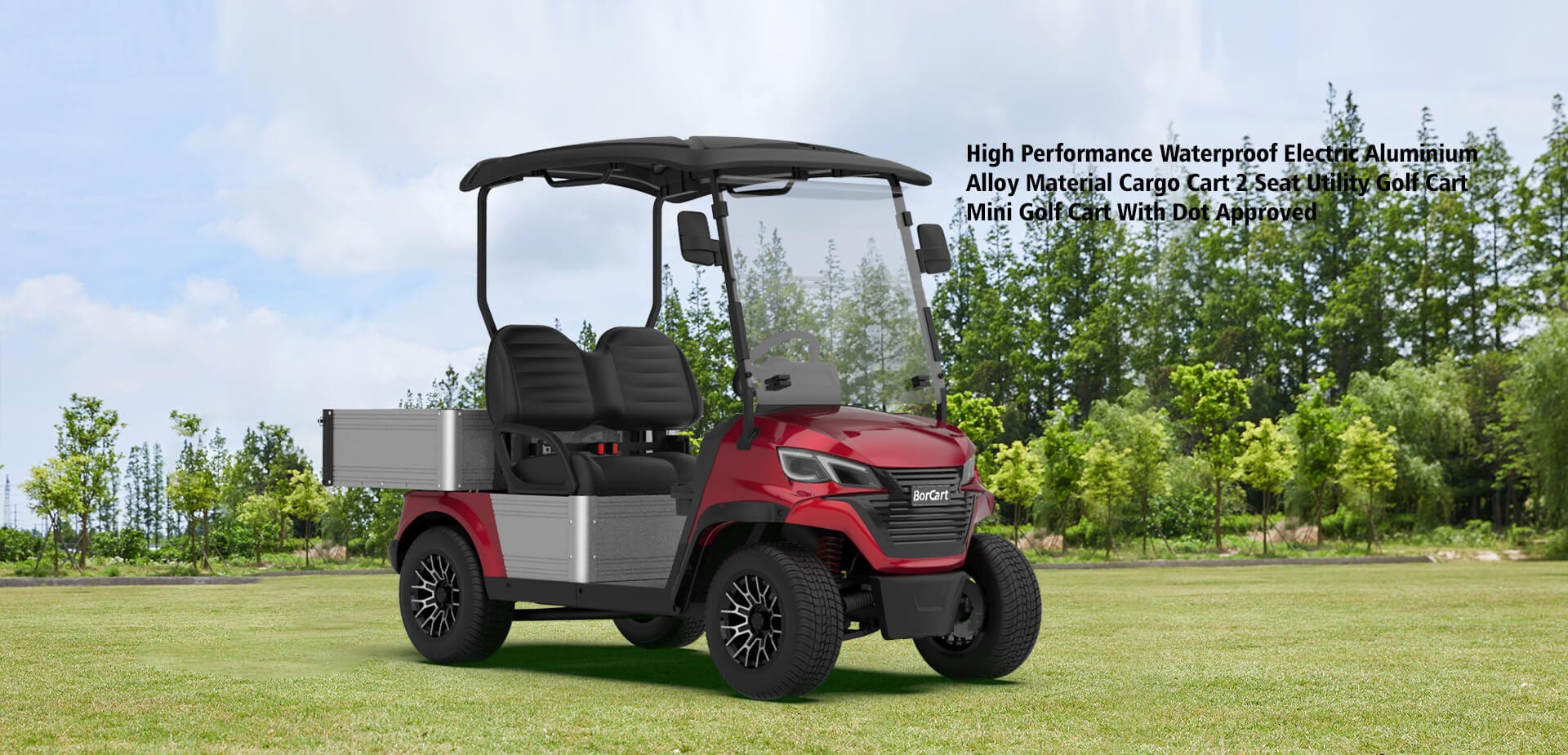

High Performance Waterproof Electric AluminiumAlloy Material Cargo Cart 2 Seat Utility Golf CartMini Golf Cart With Dot Approved

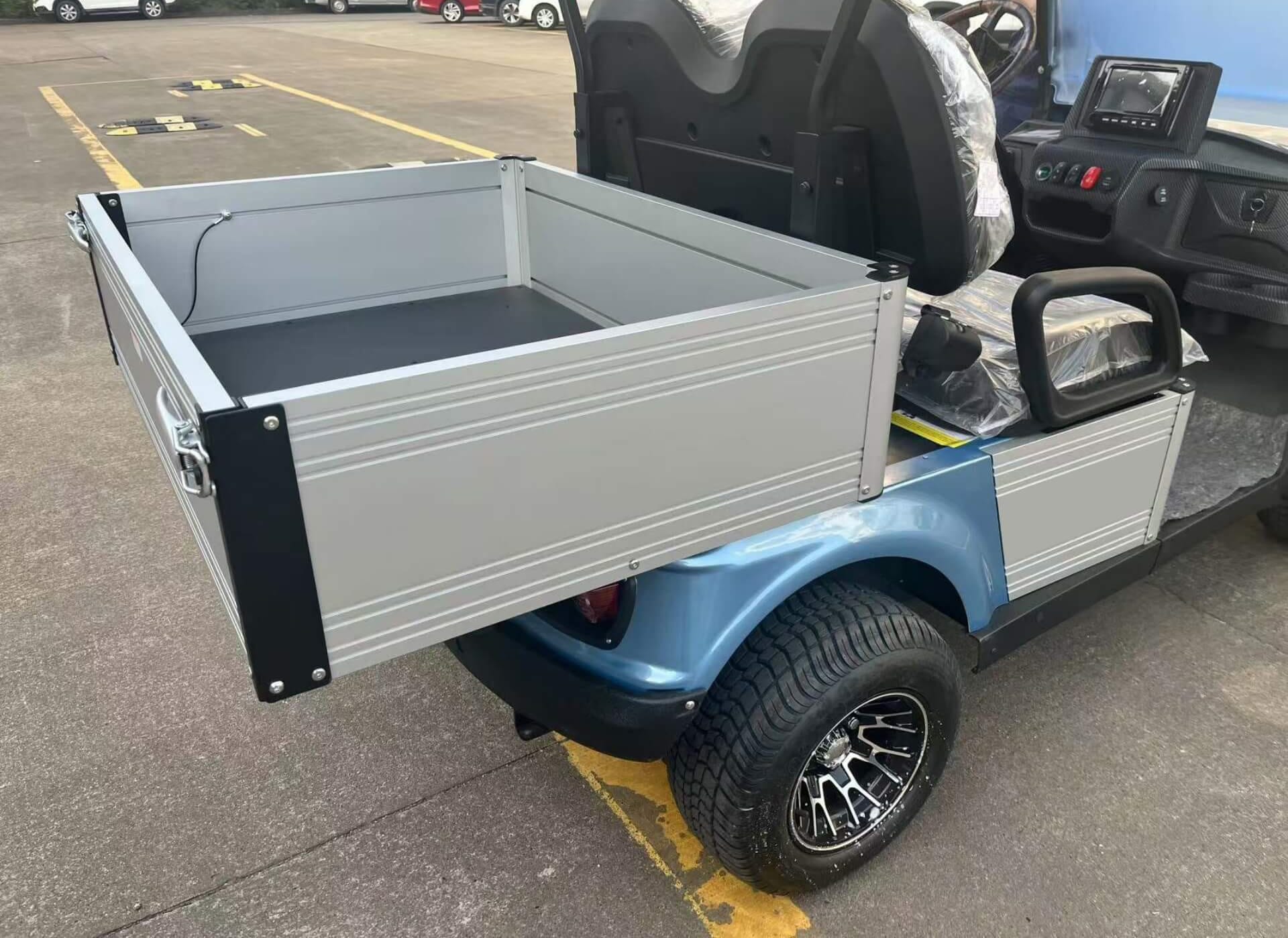

Internal product (cargo hopper)

Aluminium Alloy Material Cargo box with power flip function together with multi-functional storage box design，

This function enables the truck to be easily flipped during use, whether it is loading or unloading goods, which greatly reduces the difficulty and strength of manual operation and improves work efficiency.

Parameter section

ET series aluminum alloy hopper cart models ET-C300

HS CODE	8703101900
Qty/20’GP	8 units
Qty/40’HQ	20 units
Specifications
Performance:
Passenger capacity	2 seats
Max.Speed	≦20MPH
Climbing Ability/Hill-Holding Ability	≦20%
Safe Climbing Gradient	≦20%
Safe Parking Slope Gradient	≦20%
Braking Distance	≤3.0m
Min.Turning Radius	3.5m
Ground Clearence	100mm
Charging time	＜6hours
Battery life (temperature ≧ 20 degrees Celsius)	60-80 mile（Normal road）
Dimensions
L×W×H	280012151940mm
Aluminum alloy cargo bucket dimensions	1100mm ╳ 800mm ╳300mm
Wheel dis Front/rear	Front 920mm/Rear 1015mm
Axle Distance	1662mm
Maximum Loading (person + cargo) Weight	≤300KG
Bare Cart (without battery) Net Weight	≦440kg

Motor	KDS 48V AC motor
Power	5KW
Charger：	Intelligent Cart Charger 48V/25AH、Charging time≦6hours
Controller ：	BORCART48V350A
DC:	DC-DC 48V/12V-500W

IP66 advanced multimedia instrument, colorful automatic color-changing button, Bluetooth function, with vehicle detection function
BOSS IP66 full range hi-fi speaker H065B(voice-controlled lighting)
USB+Type-c fast charging, USB+AUX audio input
First Class seat (integral foam molding cushion + solid color premium microfiber leather)
High-strength aluminum oxide non-slip floor, Corrosion resistance, aging resistance
High-strength aluminum alloy wheels +DOT certified high-performance all-terrain tires/road tires
DOT certified anti-aging advanced folding plexiglass; Wide-angle center rear view mirror
Advanced car steering wheel + aluminum base
Advanced automobile spraying process

Frame: high-strength sheet metal frame; Spraying process: Pickling + electrophoresis + spraying
Front suspension: Double swing arm independent front suspension + coil spring + cylinder type hydraulic shock absorption.
Rear suspension: integral rear axle, speed ratio 16:1 helical spring shock + cylinder hydraulic shock + bracket suspension
Brake system: four-wheel hydraulic brake, four-wheel disc brake + electromagnetic brake parking (with vehicle traction function)
Steering system: two-way rack and pinion steering system, automatic gap compensation function

Ceiling
Plastic sprayed black square tube frame + injection moulded one-piece canopy			standard
Front windscreen and wipers
DOT approved Anti-Aging Premium Folding Plexiglass			standard
Seat belts
DOT approved two-point seat belts			standard
Body
The front and rear of the car are injection molding body covering parts; The seat barrel and body are aluminum alloy profiles.			standard
cargo bucket
Aluminum alloy profile hopper; Hopper bottom plate: Aluminum alloy plate + polymer wear-resistant material spraying (black)			standard
Cargo bucket with power flip function			standard
Floors
Aluminium alloy profile anti-slip flooring, high strength structure, corrosion and ageing resistant			standard
Dashboard
Injection molding instrument table, waterproof double-speed electric lock switch, single-arm combination switch, water cup holder; USB+Type-c fast charging, USB+AUX audio input			standard
Display screen
IP66 advanced multimedia 7-inch instrumentation, colourful ambient auto-colour change buttons, Bluetooth function, with vehicle detection function			standard
Sound system
BOSS Original, IP66 Full Range Hi-Fi Speaker H065B (Voice-activated light)			standard
Seats
First class seat (integral foam moulded seat cushion + solid colour premium microfibre leather)			standard

Standard (Forest Green, Ivory, White, Gold, Electric Blue, Apple red, black, Grey)

Suspension and brake system

Frame: high-strength sheet metal frame; painting process: pickling + electrophoresis + spraying
Front suspension: double swing arm independent front suspension + coil springs + cartridge hydraulic dampers.
Rear suspension: Integral rear axle, 16:1 ratio Coil spring dampers + hydraulic cartridge dampers + wishbone suspension
Brake system: 4-wheel hydraulic brakes, 4-wheel disc brakes + electromagnetic brakes for parking (with vehicle towing function)
Steering system: bidirectional rack and pinion steering system, automatic backlash compensation function

Dashboard

Floors

Tire

road tyres205/50-10 (4 Ply Rated). DOT certification
Soft wall: Road tires have a softer wall design that can better absorb road bumps and provide a smoother driving experience for the driver.
Fine pattern: The tread pattern of road tires is designed to reduce the noise caused by the collision between the pattern block and the road surface, so that the driving is quieter.
Low rolling resistance: The structural design of road tires focuses on reducing rolling resistance, which not only improves fuel efficiency, but also helps reduce vibration and noise during driving, further improving comfort.
