ES-L4 double row electric golf cart luxury
  • Forest Green
  • Sapphire Blue
  • crystal Gray
  • Metallic Black
  • Apple Red
  • ivory white


Revolutionize your driving experience with our LED front combination lights, which encompass a comprehensive range of functions. From low beam and high beam to turn signal, daytime running light, and position light, these advanced lights offer unmatched versatility and superior visibility. Designed with energy-efficient LED technology, these lights not only deliver exceptional brightness but also ensure long-lasting durability, making them a reliable and cost-effective choice for your vehicle.

4 seat forward facing golf carts

4 seat forward facing golf carts


Parameter section


Size Overall 3265*1340*2130mm
Bare Cart (without battery) Net Weight ≦485kg
Rated Passenger 4 Passengers
Wheel Dis Front/Rear Front1005mm/Rear1075mm
Front and Rear Wheelbase 2436mm
Min Ground Clearance 170mm
Min Turning Radius 3.5m
Max Speed ≦25MPH
Climbing Ability/Hill-Holding Ability 20% — 45%
Safe Climbing Gradient 20%
Safe Parking Slope Gradient 20%
Endurance 60-80mile(Normal road)
Braking Distance <3.5m

Confortable Performance

  • IP66 advanced multimedia instrument, colourful auto-colour change buttons, Bluetooth function, with vehicle detection function
  • BOSS Original IP66 Full Range Hi-Fi Speaker H065B (Voice-activated Lighting)
  • USB+Type-c fast charging、USB+AUX audio input
  • First class seat (integral foam moulded seat cushion + solid colour premium microfibre leather)
  • High-strength aluminium alloy oxidised non-slip flooring, corrosion and ageing resistant
  • High-strength aluminium alloy wheels + DOT approved high-performance road tyres
  • DOT certified anti-aging premium folding plexiglass; wide-angle centre mirror
  • Premium car steering wheel + aluminium alloy base
  • Advanced Automotive Painting Process

Electrical System

Electrical System



KDS 48V5KW AC motor


6 ╳ 8V150AH Maintenance-free lead-acid batteries


Intelligent Cart Charger 48V/18AH, Charging time≦8 hours


48V/350A With CAN communication


High Power Non-Isolated DC-DC 48V/12V-300W


  • Cushion: leather can be colour-coded, embossed (stripes, diamond), logo silkscreen/embroidery
  • Wheels: black, blue, red, gold
  • Tyres: 10" & 14" road tyres
  • Sound bar: 4&6 channels with voice-activated ambient light hi-fi sound bar (host with Bluetooth function)
  • Colour light: chassis & roof can be installed, seven-colour light strip + voice control + remote control
  • Others: body & front LOGO; body colour; instrument on LOGO animation; hubcap, steering wheel, key can be customized LOGO (from 100 cars)

Suspension and brake system


  • Frame: high-strength sheet metal frame; painting process: pickling + electrophoresis + spraying

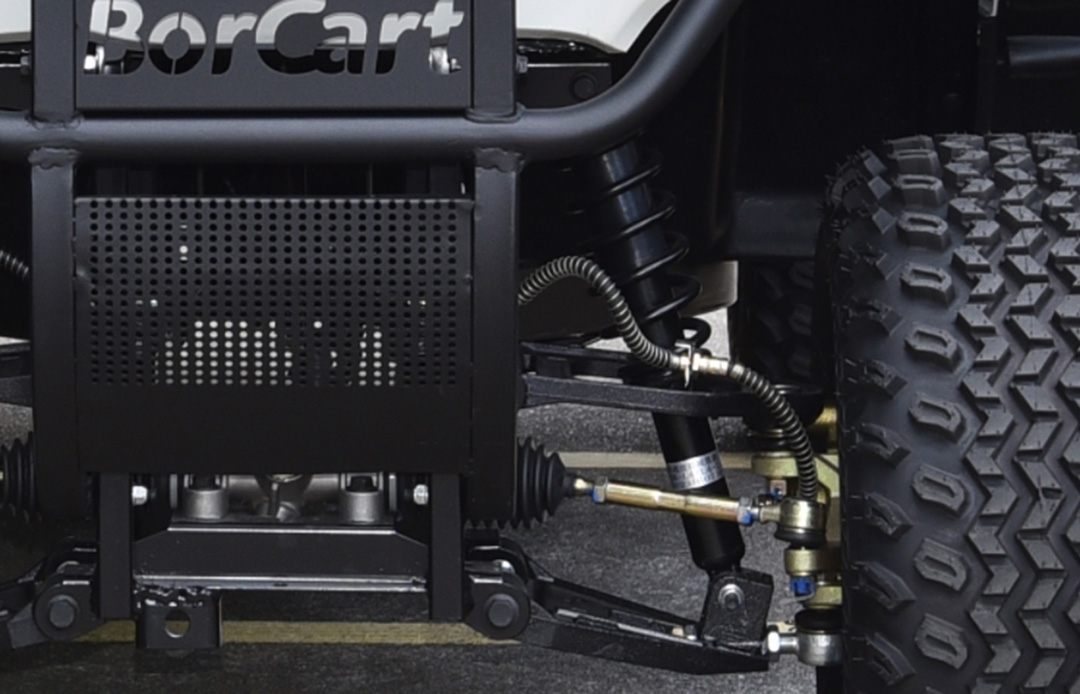

  • Front suspension: double swing arm independent front suspension + coil springs + cartridge hydraulic dampers.
  • Rear suspension: Integral rear axle, 16:1 ratio Coil spring dampers + hydraulic cartridge dampers + wishbone suspension
  • Brake system: 4-wheel hydraulic brakes, 4-wheel disc brakes + electromagnetic brakes for parking (with vehicle towing function)
  • Steering system: bidirectional rack and pinion steering system, automatic backlash compensation function



  • With a focus on excellence, our aluminum alloy floor is meticulously created using top-grade aluminum material and a high-strength structure. It is carefully engineered to offer unparalleled strength, resilience, and durability, guaranteeing that your flooring investment will retain its remarkable beauty and integrity over an extensive period, even in areas with a significant volume of foot traffic.
Aluminium alloy golf cart floor



  • Experience unparalleled stability and safety on the road with our advanced cushion design. Engineered to perfection, our cart seat material features an integral foam moulded seat cushion combined with high-quality microfibre leather in a solid color. This innovative blend not only eliminates any shifting while driving but also provides a tailored fit to your body's curves, delivering exceptional comfort and support like no other.



  • Make safety a priority with our DOT certified tires. Our all-terrain 23*10.5-12(4 Ply Rated) tires are engineered to provide exceptional traction and cushioning for a secure driving experience. The combination of these reliable tires and our high-quality golf cart rims ensures precise tire control and stable braking, reinforcing the significance of safe driving practices.


Qualification certificate and battery inspection report
